4K 60hz HDMI 8x2 Multi-viewer with PIP 8 in 2 Out Dual Display Seamless Switcher with Optical 3.5mm Audio 2x1 3x1 4x1 5x1 6x1 8x1 Multi-viewer

Friendly reminder: If the displayed language is incorrect, please contact customer service for instructions on how to change the language settings. Product Description: This unit is a multi-viewer with matrix function,It supports the subtitle display function and has a variety of video segmentation, seamless switching 8 HD input signal synchronously,Supports up to 8 HDMI signal source input and the maximum output of 4K@60Hz. Plug and play and simple operate, often used in conference rooms,teaching, games and other HDMI signal source display places. Features: * Support 8 HDMI inputs, 2 HDMI output; * Support the dynamic display of subtitles, Pop-up mode is from left to right or top to bottom, the subtitles can be scaled; * Support PIP function, mode from left to right or top to bottom, scalable; * Support seamless switching; * Support stereo 3.5 headphone output and optical fiber audio output; * Support 4 control modes: button, remote , RS232 and network port control. Specifications: Input resolution ：the highest support 1080P/60Hz Output resolution： the highest support 4K/60Hz Audio format ：Stereo Input and output cable distance ：1080P/60Hz≤15M AWG26 HDMI standard cable Max bandwidth ：600MHz Max baud rate ： 6x3Gbps Max working current ：800mA Power adapter format ： Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A Operating temperature range： (-15℃to +55℃) Dimension (L x W x H)：approx. 226x113x25 (mm) Weight：approx. 520g Package Accessories : 1 x 4K HDMI 8x2 multi-viewer 1 x 12V/1A power adapter 1 x Remote control without battery 1 x User manual Remark: output B only supports single display1/2/3--8 or copy the current output A, does not support displays multi-viewer independently.

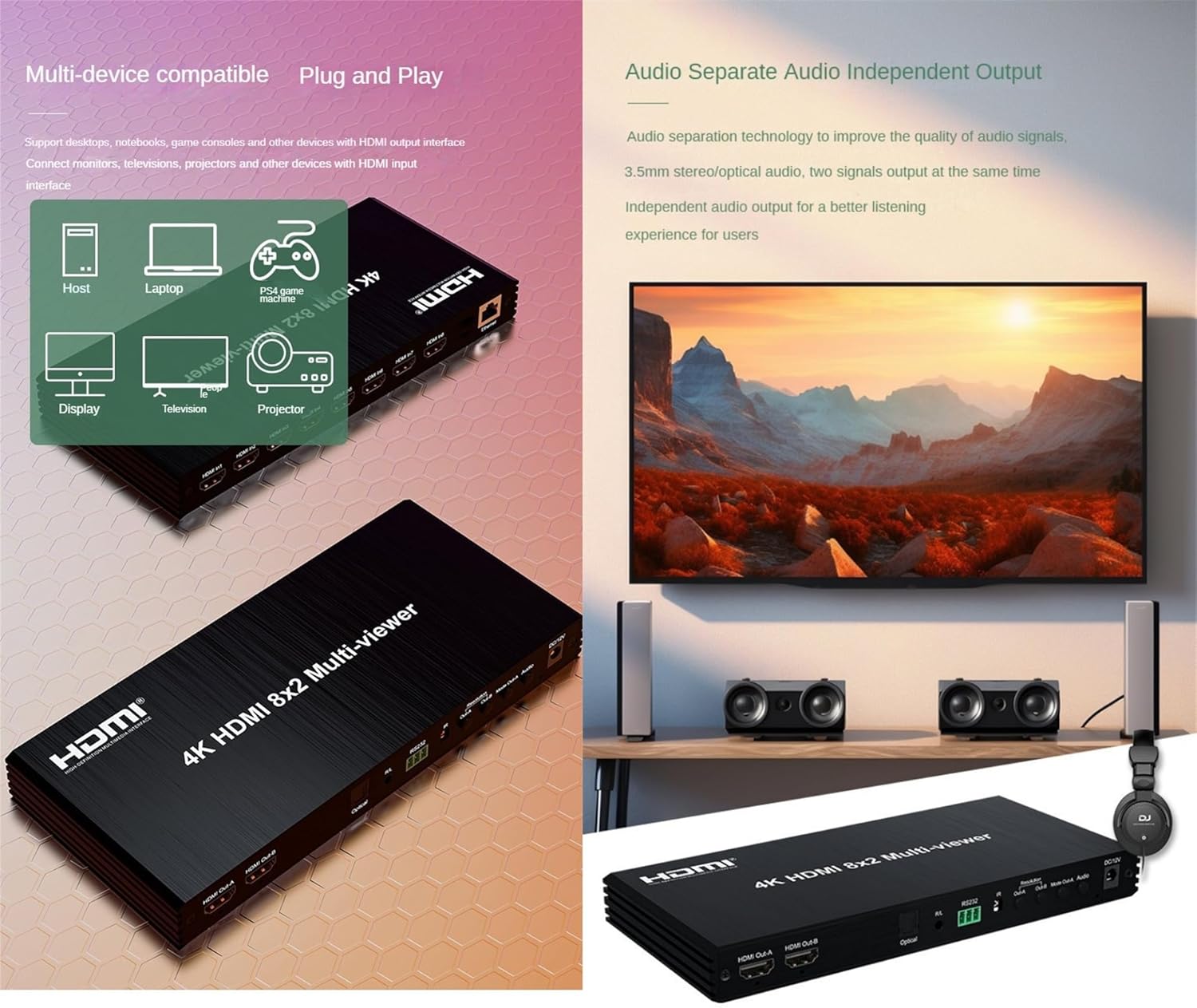

• A:Audio separation audio independent output: audio separation technology, improve the quality of the audio signal, 3.5mm stereo/optical audio, two signals at the same time output independent audio output, to bring users a better listening experience.

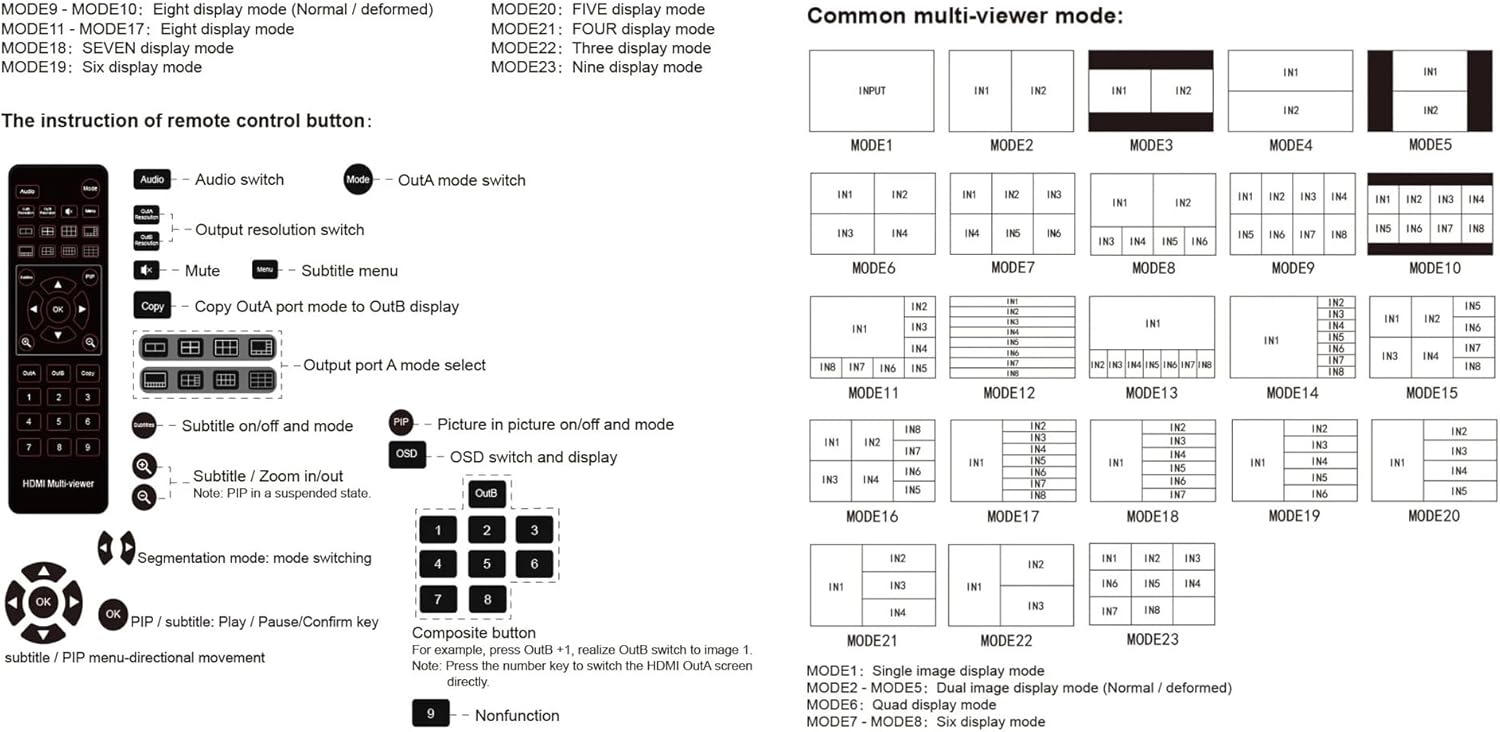

• B:Remote control / press build / RS232 / network interface: a variety of control modes, remote control can also be manually pressed keys and through the RS232 serial port and network interface control signal switching, by your control. * Support 4 control modes: keypad, remote control, RS232 and network port control.

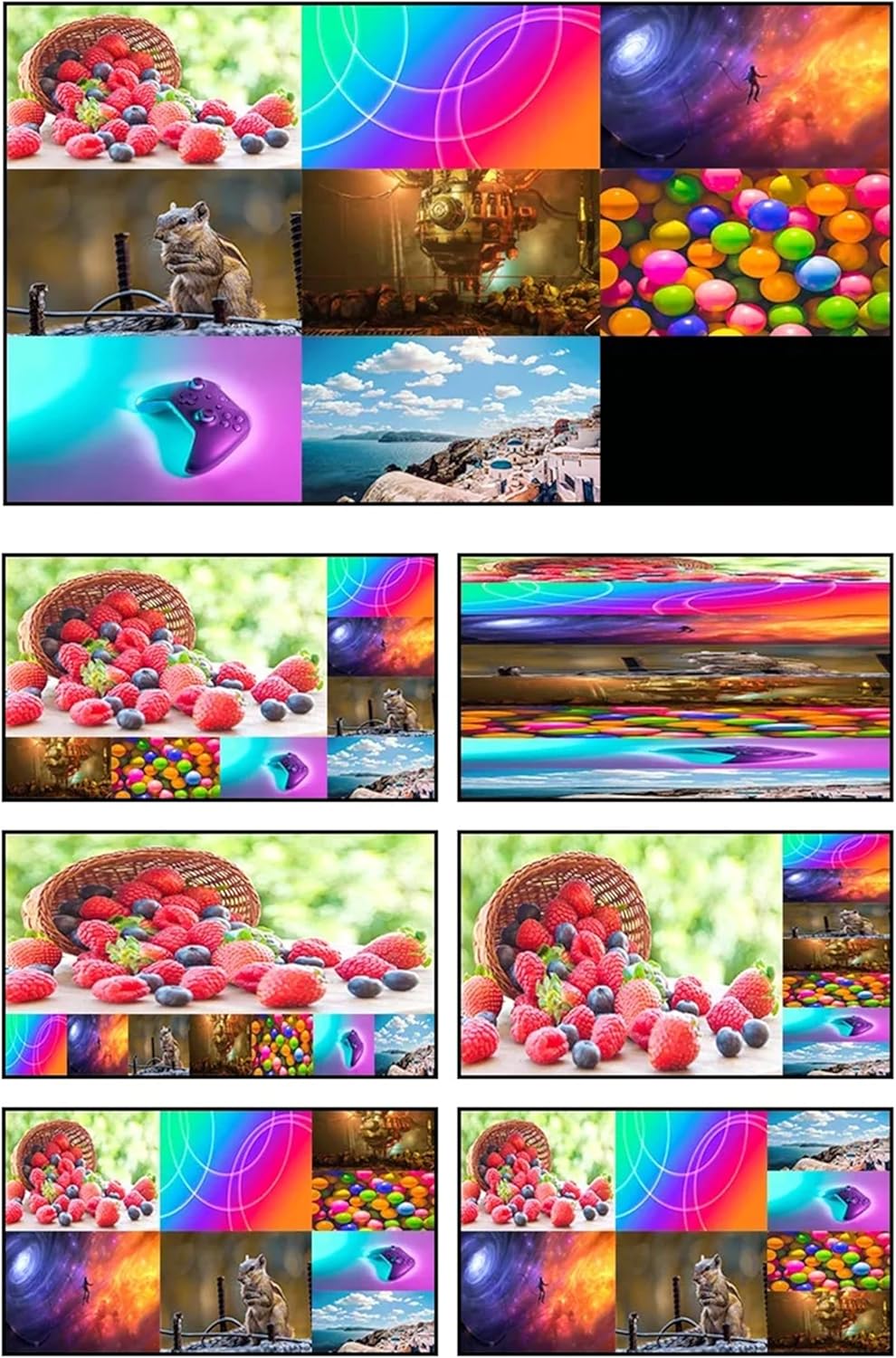

• C:Sharing the same screen to switch at will: eight HDMI signal input, two outputs of the same / different screen images, while displaying a / two display devices on the custom subtitles, free to control the audio separation immersive audio-visual.
• D:4K high-definition picture quality 3840 * 2160 pixels: new support for high-definition 4K/60Hz signal, so that the three-dimensional picture jumped on the lifelike enjoy high-definition vision.

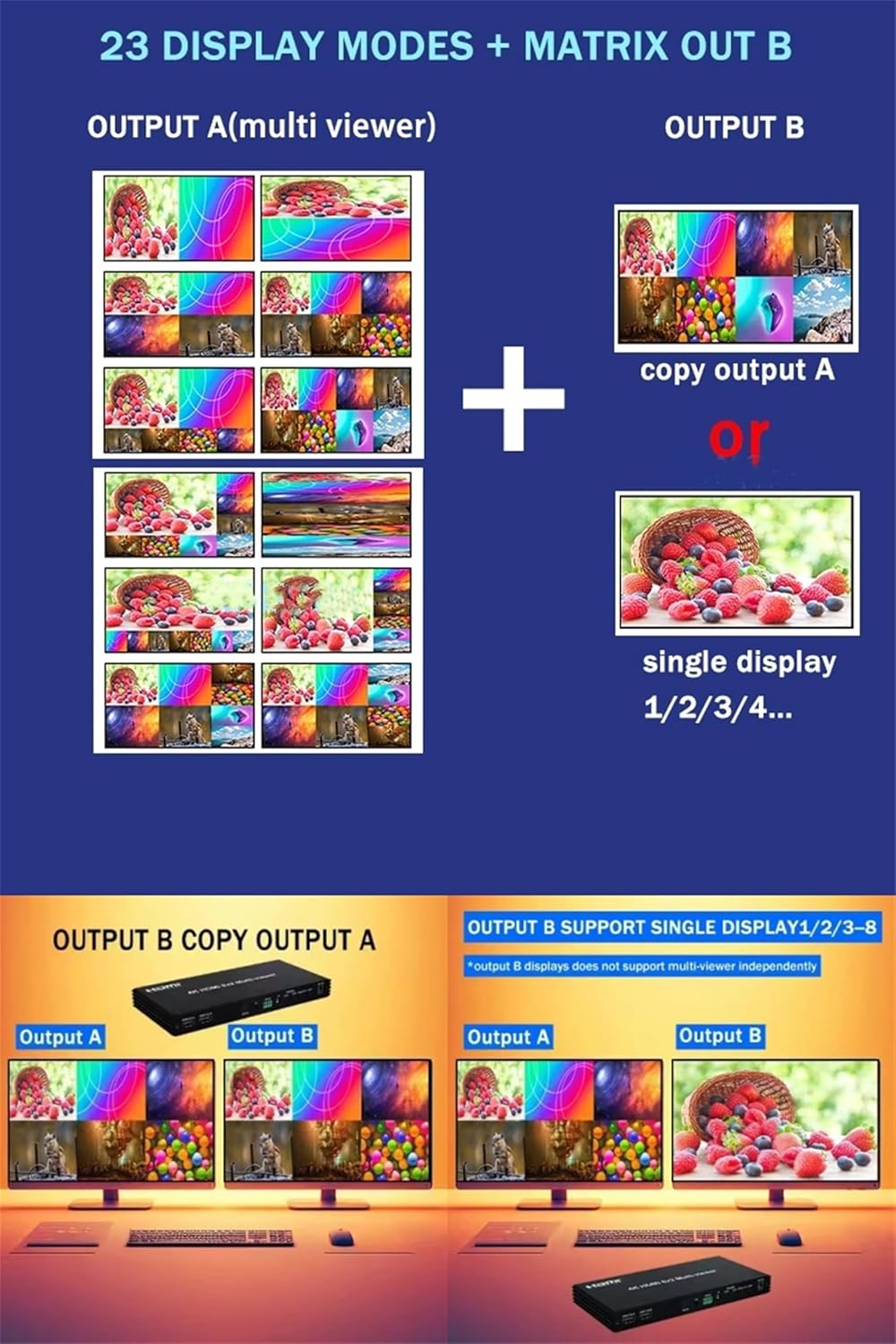

• E:Note: Output B only supports a single screen 1/2/3--8 or a copy of the current Output A, does not allow independent display of multiple screens.
• F:Friendly reminder: If the displayed language is incorrect, please contact customer service for instructions on how to change the language settings.
