CablesOnline, 50ft RG8X Coax UHF PL259 Male to UHF PL259 Male 50-Ohm Antenna Pure Copper Cable, Made-in-The-USA, R-U050T

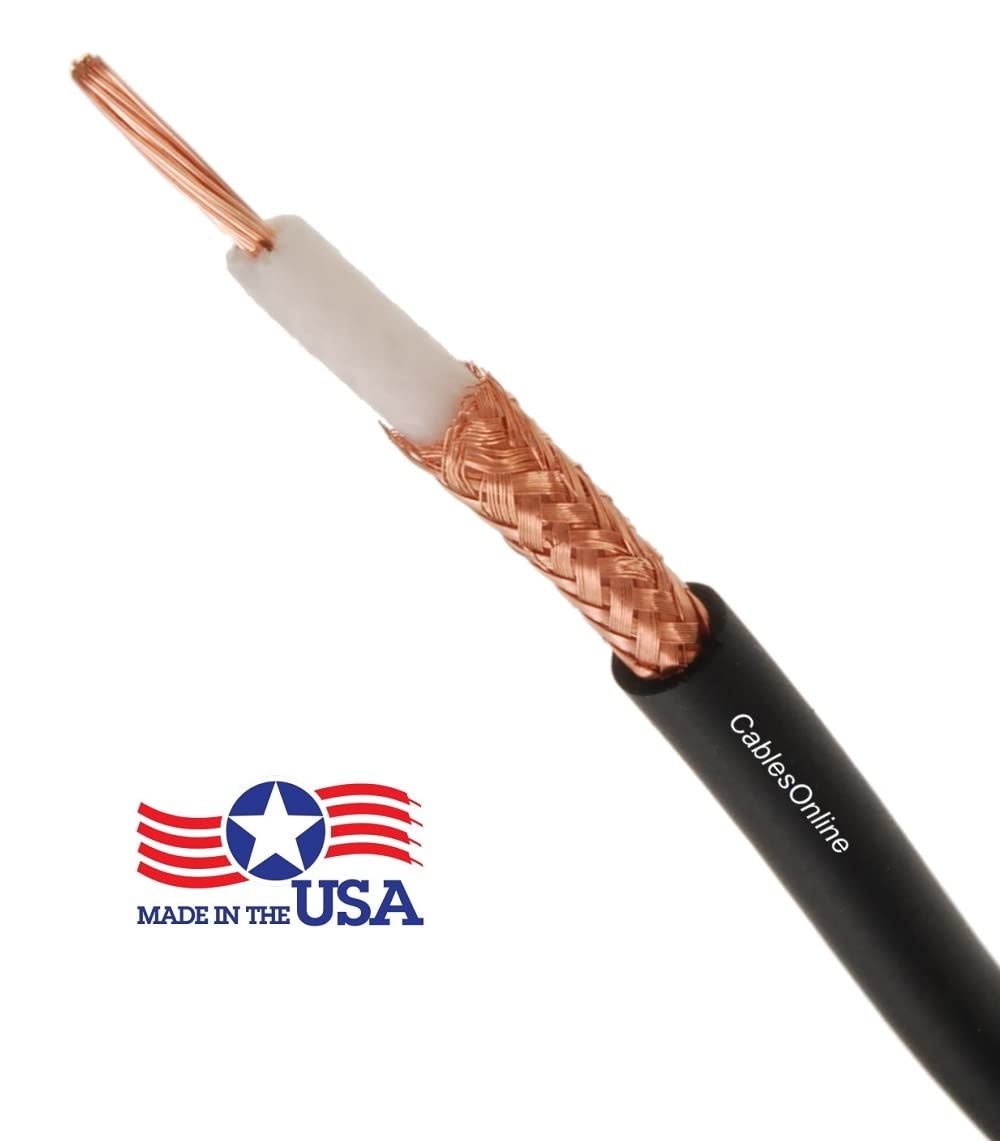

CablesOnline, 50ft RG8X Coaxial UHF PL259 Male to UHF PL259 Male 50-Ohm Antenna Pure Copper Cable, Made-in-the-USA, R-U050T RG8X or (RG8-Mini) is a high performance coaxial cable that is known for its flexibility. This cable is Made in the USA with pure Copper inner conductor and pure Copper braid shielding. The gauge is 16AWG and the outside diameter is 6.14mm. Physical Specifications: * Inner Conductor Material: Bare Copper * Stranding: 19x29, Gauge: 16-AWG * Dielectric/Insulation Material: Foam Polyethylene * Outer Shield Type: Braid * Outer Shield Material: Bare Copper * Outer Shield Coverage: 96% * Outer Jacket Material: Polyvinyl Chloride * Outer Diameter: .242" (6.14mm) * Jacket Color: Black Electrical Specifications: * Nominal Capacitance : 248 pF/ft * Nominal Characteristic Impedance: 50 Ω(ohm) * Nominal. Velocity of Propagation: 82％ Nominal Attenuation: * 50 MHz : 2.50 dB/100ft * 100 MHz : 3.70 dB/100ft * 200 MHz : 5.40 dB/100ft * 400 MHz : 8.00 dB/100ft * 1000 MHz : 13.20 dB/100ft * Length: 50 feet * Quantity : 1-piece * UPC : 194732002781 CablesOnline Part Number: R-U050T

• Made-in-the-USA RG-8X Premium Coax Antenna Cable
• Great as jumpers to an antenna tuner, switch, meter or your main antenn
• 50Ω Low-loss RG8X (RG8-Mini) 96% Shielding
• Heavy-Duty UHF PL259 Connectors
• Copper Inner Conductor, Superior Copper Shielding
• Length: 50 feet
• Quantity : 1-piece
• UPC : 194732002781
