Canile AZD-S11 Safety Door Switch Interlock, 2A 400VAC, IP65,with Actuator, CE Certified for Machine Guarding & Industrial Safety

The Canile AZD-S11 is a safety door interlock switch designed to safeguard personnel by monitoring the position of machine guards, doors, or access panels. It is a fundamental component in building safety circuits for presses, robots, automated assembly lines, and other industrial equipment where hazardous motion exists. How It Enhances Your Safety System When the guard door is closed, the actuator engages the switch, allowing the machine to run. If the door is opened while the machine is operating, the actuator disengages, causing the switch contacts to change state. This signal is sent to the machine's safety relay or controller to initiate a safe stop (e.g., Category 2, 3, or 4 stop per ISO 13849-1). Contact Configuration: 1NO+1NC (1 Normally Open + 1 Normally Closed) Rated Load: 2A 400VAC (Resistive Load) Electrical Life: > 100,000 operations Housing Material: Zinc Alloy or Stainless Steel Protection Rating: IP65 Safety Standards: Complies with relevant parts of IEC/EN 60947-5-1 and carries CE marking. Installation & Compatibility This switch is designed for easy surface mounting. The separate actuator allows for flexible adjustment to ensure precise alignment and reliable operation. It is compatible with standard safety control systems. Package Includes: 1 x Canile AZD-S11 Safety Door Switch Body 1 x Matching Actuator

• Provides a reliable safety signal to machine control systems to immediately stop operation when a guard door is opened, helping to prevent accidents and ensure compliance with safety regulations.
• Rated for 2A at 400VAC, suitable for directly switching control circuits in various industrial machinery and applications.
• Features a mechanically driven, positive-opening contact structure (typically). This high-reliability design ensures contacts open safely even in case of a welded contact or spring failure.
• Built with a metal housing for impact resistance and may offer a degree of sealing (IP65) against dust and oil splashes for use in harsh workshop environments.

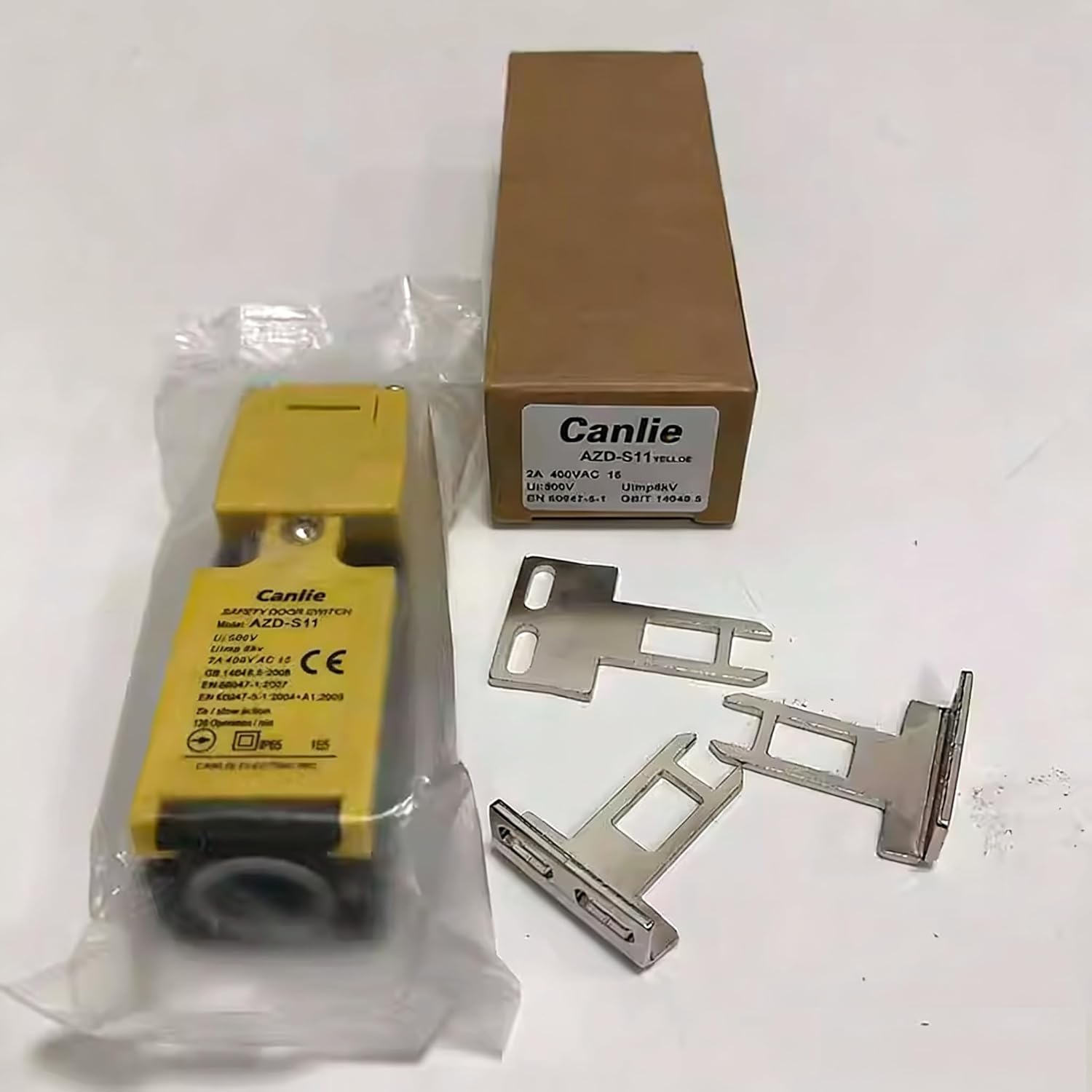

• Comes as a complete set including both the switch body and the matching actuator , along with mounting hardware for straightforward installation on doors, gates, or guards.
