CHANCS Mini Electric Motor 895 DC 12V/24V 6000RPM 12000RPM Fixed Bracket 20A PWM Speed Controller for DIY Parts
4.0 (50 items)
Limited Time SaleUS$24.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221093902 | Release Date | 2026/05/03 | List Price | US$16.40 | Model Number | 221093902 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

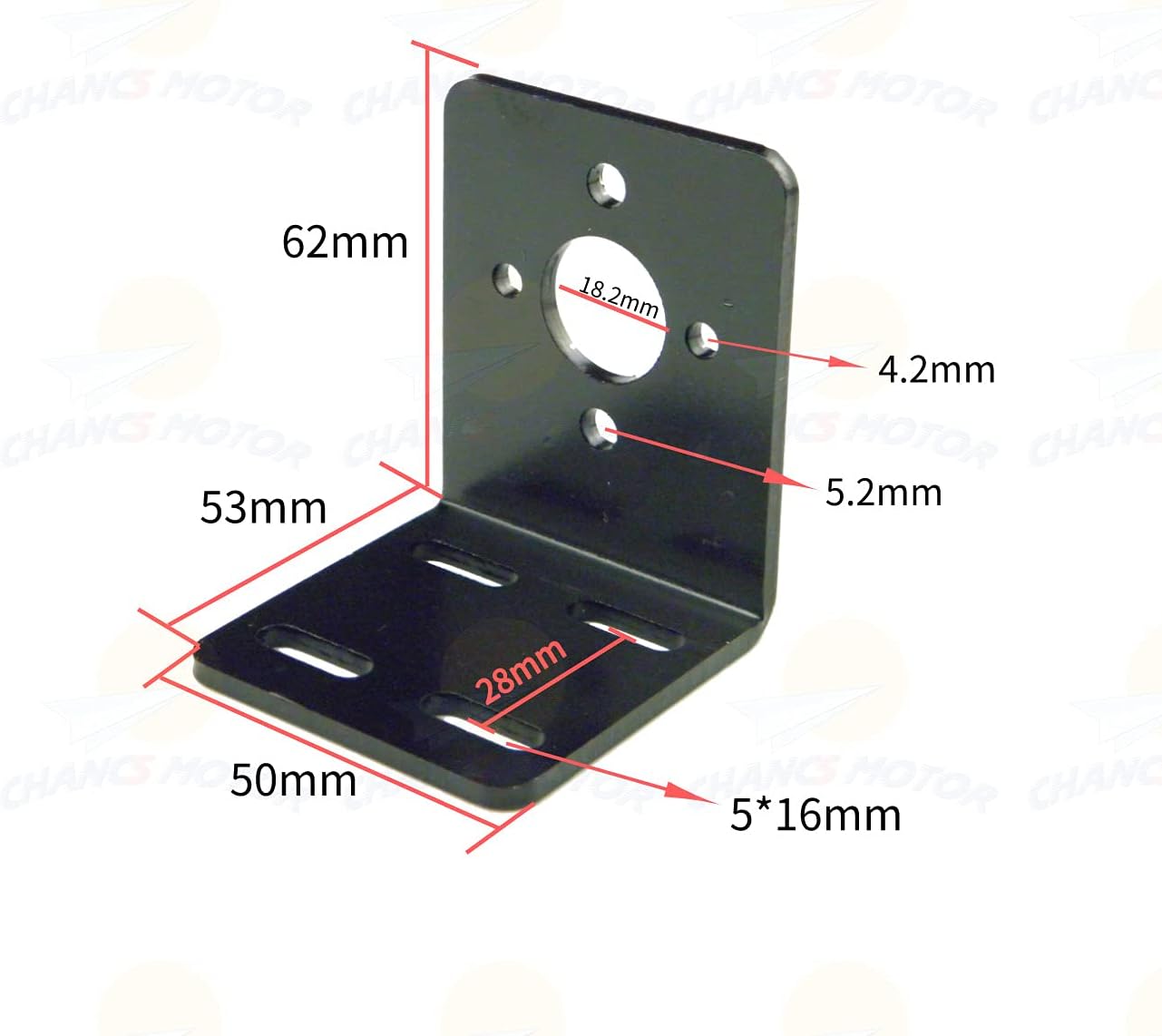

*【The Specifications of the motor:】 Type: 895 DC Motor; Rated voltage: 12V, No-Load Speed: 6000 RPM; Rated voltage: 24V; No-Load Speed: 12000 RPM; Torque:≤7.8Kgf.cm; No-load current: 0.9A; Power：150W Shaft Diameter: 5mm; Shaft length: 16mm; Length：72mm; Width: 48mm; *【The specification of the speed controller:】 Input Voltage: DC 10V-DC 60V (Ultra wide working voltage)； Output voltage: linear under load； Control Power: 0.01-450W； Rated Current: 10A； Max Current: 20A (Long-term use of 10A, 450W or less, pay attention to keep the module free of heat dissipation conditions.)； PWM Duty Cycle: 0%-100%； PWM Frequency: 25Khz； Product Size(L x W x H): 77*45*28mm； *【The Specification of the Bracket】: Bracket material：steel； Thickness of bracket: 2.8-3mm； Length: 50mm ； Width: 53mm ； Height: 62mm ； Mounting hole diameter: 5.2mm/4.5mm ； *【Attention:】 1.Please do not connect AC power directly(Such as:110V AC),the input volt of this controller should be DC 9V-60V,otherwise it will be burned out. 2.This speed regulator is for use with DC brushed motors. It is NOT suitable for speed regulation of DC brushless motors; nor can it be used as a voltage regulator or voltage stabilizer! 3.Positive and negative pole of the POWER and the MOTOR can NOT be reversed.
- *This is a 895 DC motor with bracket and 20A DC Motor Speed Controller, the mounting brackets are designed to be used as an additional support for your motors or as an alternative mounting option.
- *The motor is with ball bearing, large torque, low noise, built-in cooling fan,durable and long service life. The speed regulator can adjust the motor speed, suitable for all kinds of DIY, craft.
- *Adjust the knob of potentiometer to change the output occupying Vacancy proportion of controller, and the motor speed will change.
- *Package include: 1 x DC Motor, 1 x Speed Control, 1 x Bracket, 1 x Saw blade connecting rod, 2 x Hardware tools.
- *Attention: 1.Please do not connect AC power directly(Such as:110V AC),the input volt of this controller should be DC 9V-60V,otherwise it will be burned out. 2.Positive and negative pole of the POWER and the MOTOR can NOT be reversed.
| Model | 895 Motor |
|---|---|
| Voltage | 110 Volts, 9 Volts |
| Brand Name | CHANCS |
| Horsepower | 150 Watts |
| Item Weight | 0.85 Kilograms |
| Part Number | DC089524033-SCHP |
| Manufacturer | CHANCS MOTOR |
| Material Type | Alloy Steel |
| Included Components | NO |
