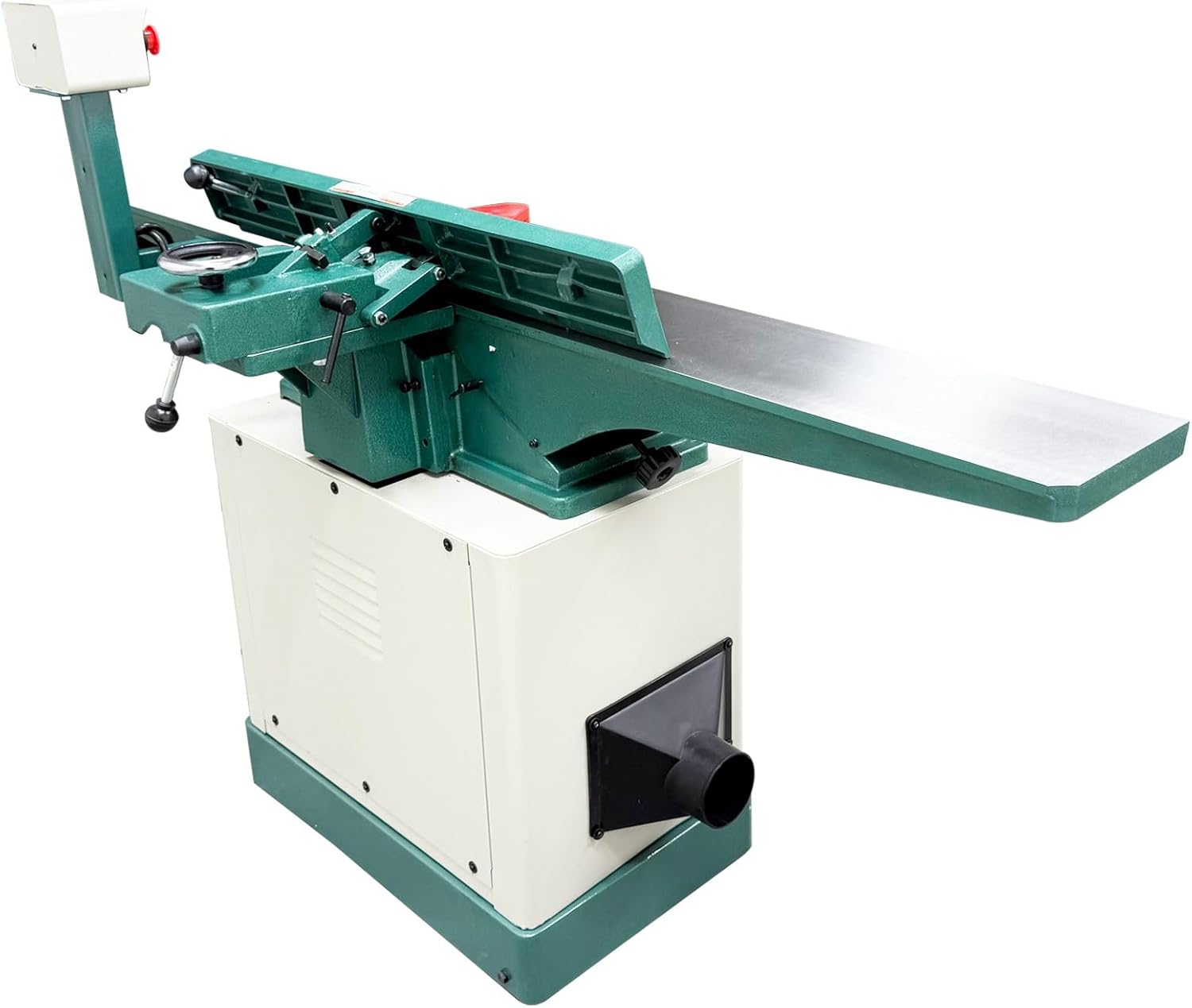

INTSUPERMAI 8 Inch 220V Heavy Duty Jointer Planer, 2.2KW Woodworking Surface Planer Benchtop Jointer with Cast Iron Table, 1”-8” Width, 4 Blades 5000RPM, for Wood Shop & Furniture Making

Parameters: Electrical Parameters: Motor Type: Induction Motor Rated Power: 2200W Rated Voltage: 220V Rated Frequency: 50Hz Switch: NHD Safety Electromagnetic Switch Planing Capacity: Maximum Planing Width: 8.0" (203mm) Minimum Planing Width: 1" (25.4mm) Maximum Planing Depth: 0.125" (3.175mm) Minimum Stock Thickness: 0.5" (12.7mm) Minimum Stock Length: 12.0" (305mm) Minimum Stock Width: 1" (25.4mm) Mortising Dimensions: 0.5*8" (12.7*203mm) Cutter Shaft Parameters: Blade Cutting Diameter: φ2.95" (φ75mm) Number of Blades: 4 pieces Blade Specification: 8.0×0.78×0.11" (205×20×3mm) Cutter Shaft Speed: (5000RPM) Worktable Parameters: Total Table Length: 72.2" (1835mm) Infeed Table Length: 35.3" (897mm) Outfeed Table Length: 35.3" (897mm) Table Height (from floor):‌ 32.2" (820mm) Stock Guide Parameters: Fence Dimensions: 5×35" (127×890mm) Positioning Angle: 45°/ 90°/ 135° Dust Port: Diameter: φ3.9" (φ100mm) V-Belt: Specification: a1219 Push Handle: Quantity: 2 Machine Information: Material: Chrome-plated, Cast Iron Net Weight: 413.3lbs (187.5kg) Gross Weight: 525.8lbs (238.5kg) Packing Type: 2 wooden crates

• Powerful 220V Industrial Motor & 8-Inch Planing Capacity: Features a robust 2.2KW (2.95HP) all-copper induction motor for strong, continuous power. This 220V heavy-duty jointer planer handles boards up to 8 inches (203mm) wide, making it ideal for professional woodworking shops and furniture manufacturing, ensuring stability for squaring lumber and surface planing
• Precision Depth Control & Versatile Material Handling: Achieve exact leveling and thickness adjustments with a maximum planing depth of 1/8" (3.175mm). This benchtop surface planer efficiently processes stock from 1"-8" (25.4-203mmmm) wide and 12" (305mm) long, perfect for straightening boards and performing both rough and fine woodworking tasks

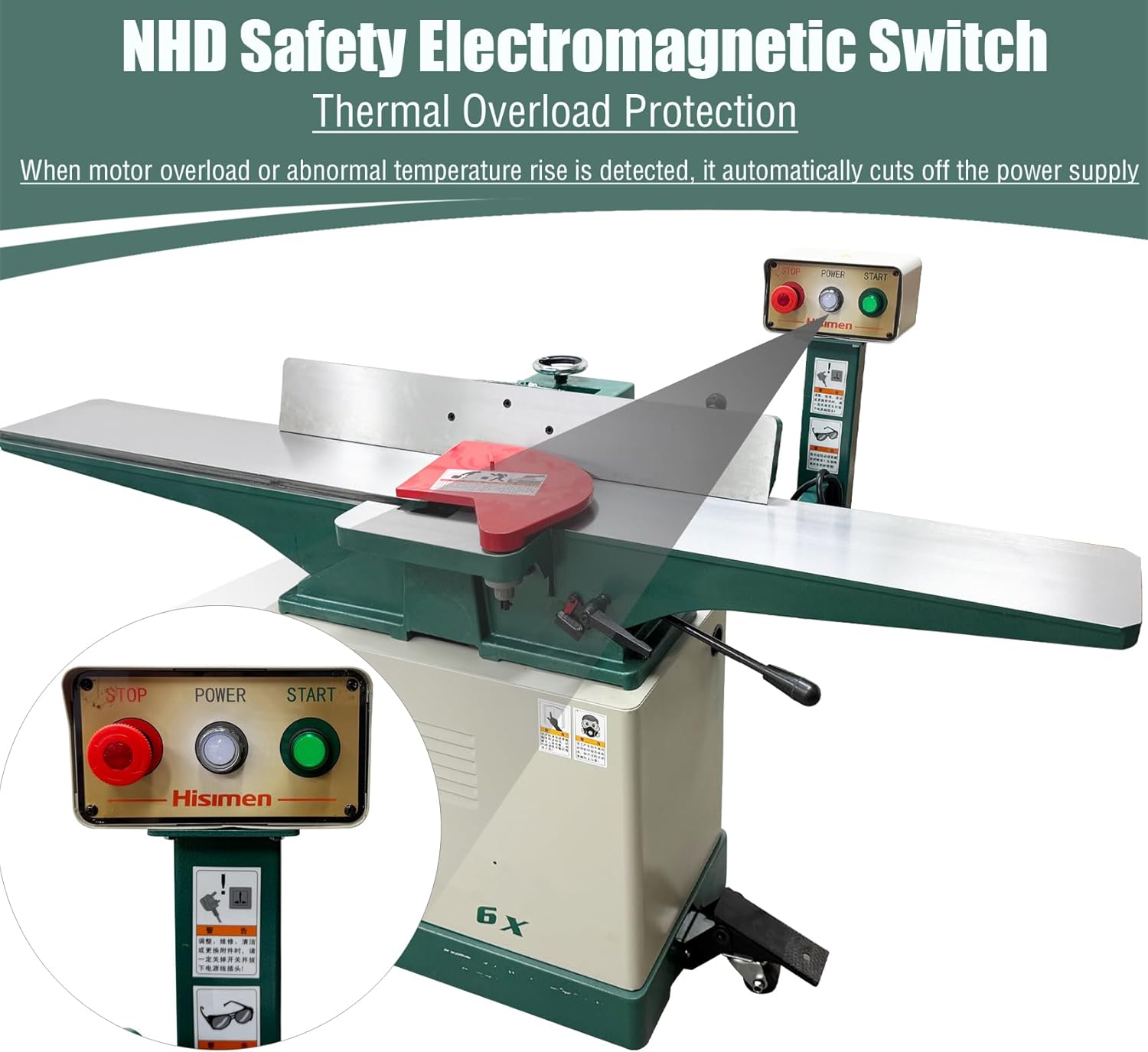

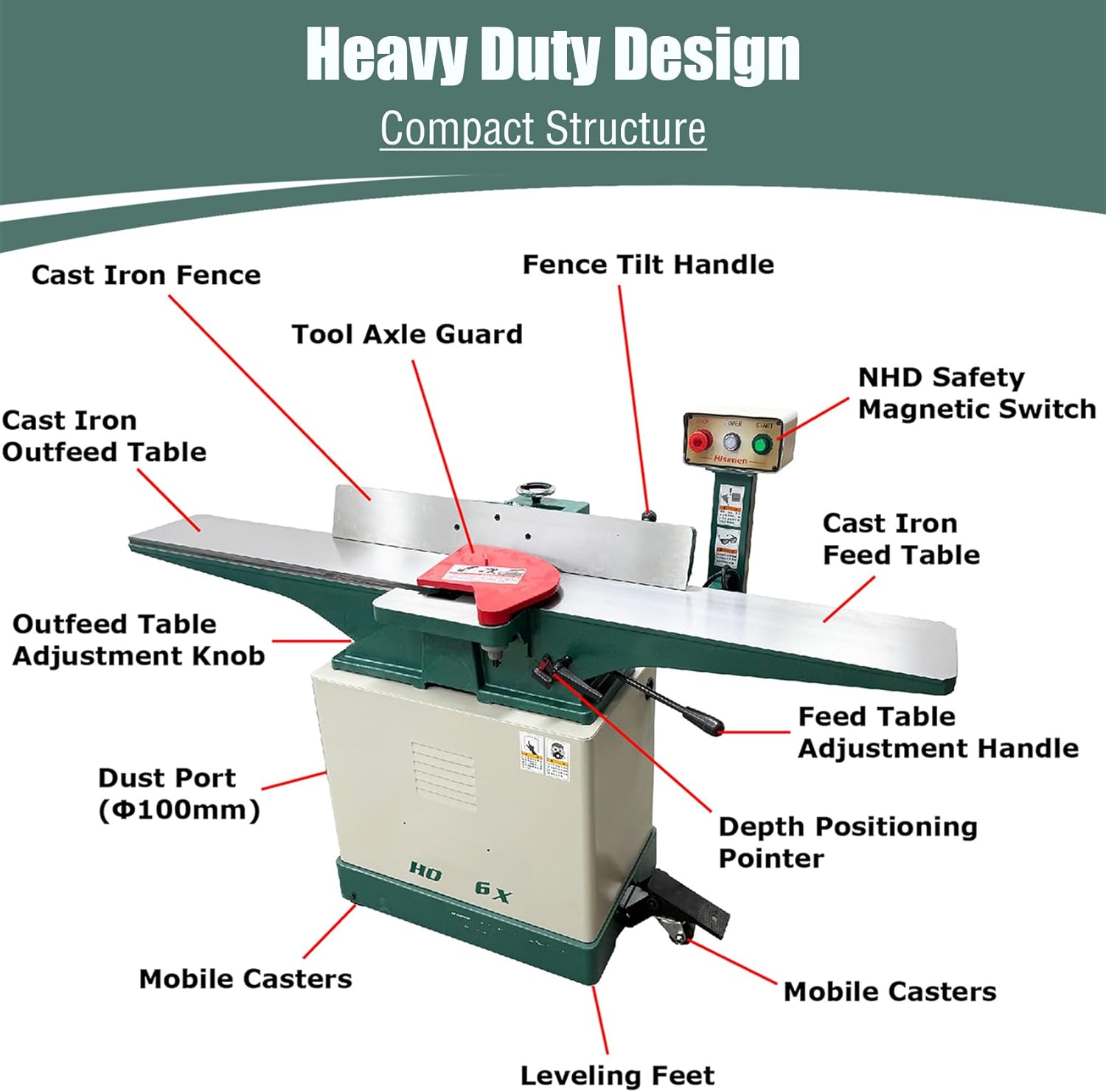

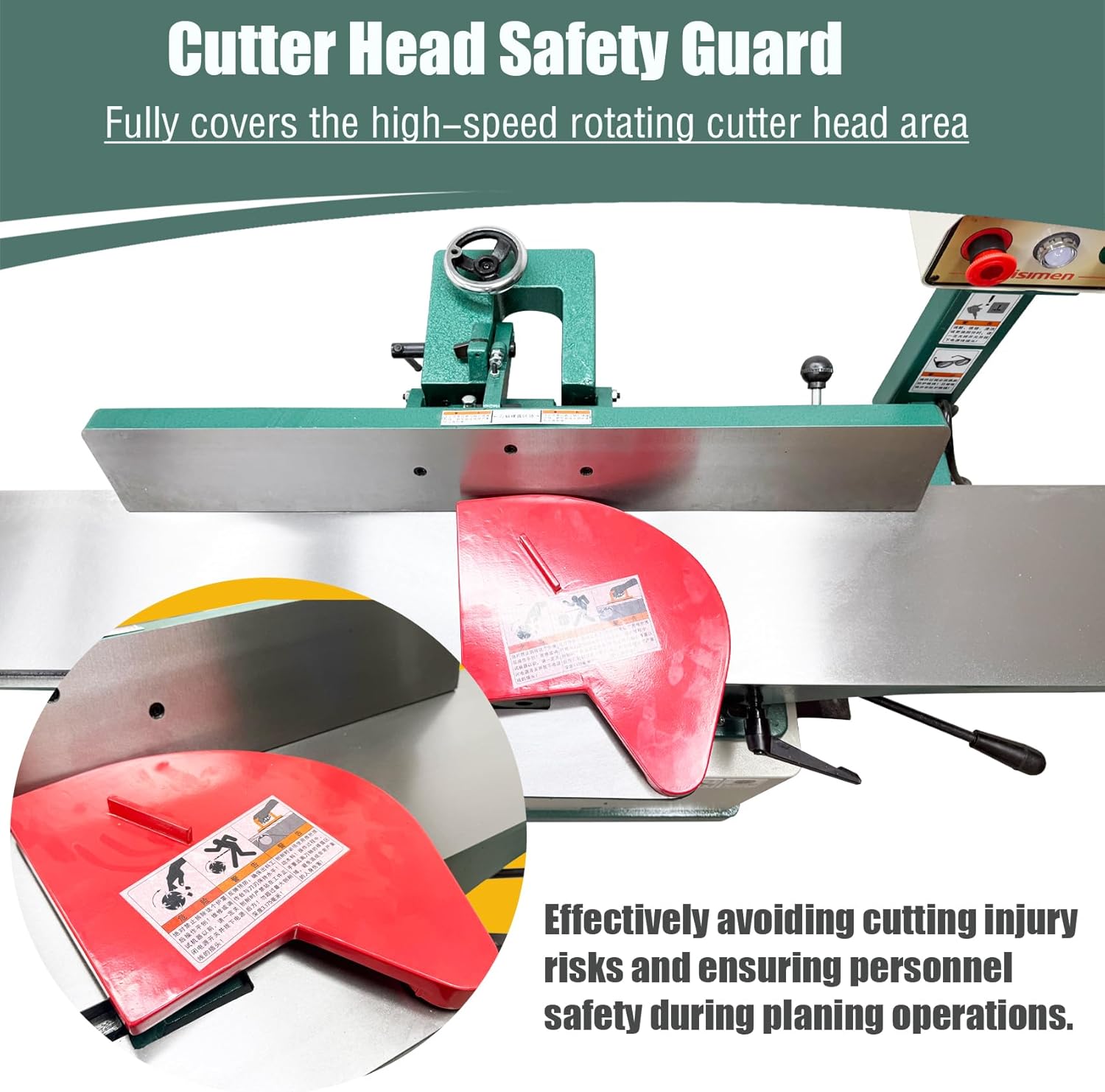

• Durable Cast Iron Construction & Essential Safety Features: The benchtop wood jointer planer machine built with a heavy-duty, box-type cast iron structure and a precision-ground worktable for superior flatness and vibration resistance. Key safety includes a full cutter head safety guard and an NHD safety electromagnetic switch with thermal overload protection, safeguarding both the user and the motor
• Enhanced Accuracy with Fence System & User-Friendly Adjustment: Equipped with a quick-set fence system for precise 45°/90°/135° angle planing and a dovetail lifting mechanism for smooth, stable table height changes. The clear lifting scale and accessible infeed/outfeed adjustment handles allow for rapid, precise setup, boosting workshop efficiency
• Integrated Mobility & Effective Dust Collection Port: Our woodworking jointer planer features four swivel casters with pedal locks for easy movement and secure positioning in the workshop. The standard φ3.94-inch (100mm) dust port enables direct connection to a dust collector, effectively removing chips and maintaining a clean, safe working environment during operation
