INTSUPERMAI Steam Label Heat Shrink Machine for Beverage/Bottle Packaging - 5.6FT Heating Chamber, Dual Safety Valve, Precise Temp Control (75-95°F), Stainless Steel Construction 220V 3 Phase

The packaged items are heated more uniformly, the surface is more flat after packaging, not easy to crease. It is the use of product labeling film wrapped around the outside of the product, after steam heating, so that the labeling film contraction wrapped tightly around the product, the full display of the appearance of the goods, to increase the aesthetic and the sense of value. Mainly used for daily chemicals, beverages and other products after the set of heat shrinkable labels. Any bottle type can be simply adjusted to achieve the effect of flat appearance and beautiful shrinkage. Product Parameters (Steam Generator) Voltage: AC220V Power: 24kW Phase number: 3 Steam temperature:0-100℃(0-212℉) Rated evaporation: 70.5lbs/h(32kg/h) Rated work pressure: 0.5Mpa Water volume: 7.1gal(27L) Package size: 28.7"*23.6"*59.4" (73cm*60cm*151cm) Net weight/Gross weight: 164.2lbs(74.5kg) / 231.5lbs(105kg) Product Parameters (Steam Shrink Machine) Voltage: AC220V Power: 90W Phase number: 1 Length of the heat shrinkage chamber: 5.6FT(1.7m) Maximum bottle diameter: 4.3"(11cm) (There's no height requirement. Bottles can be laid down.) Production: 3000-10000 bottles/h Conveyor speed: 0-115ft/min (0-35m/min) Vapo tension: 0.045Mpa Steam dosage: 70.5lbs/h(32kg/h) Heating temperature: 167-203℉(75-95℃) Suitable shrink film: PVC/PP/POF/PE/ETC/PET Machine material: Stainless steel Label height: 10.2"(26cm) Tunnel size(LxWxH): 39"*3.9"*11.8"(100cm*10cm*30cm) Package size: 100.4"*25.6"*53.1" (255cm*65cm*135cm) Net weight/Gross weight: 212.7lbs(96.5kg) / 386.9lbs(175.5kg)

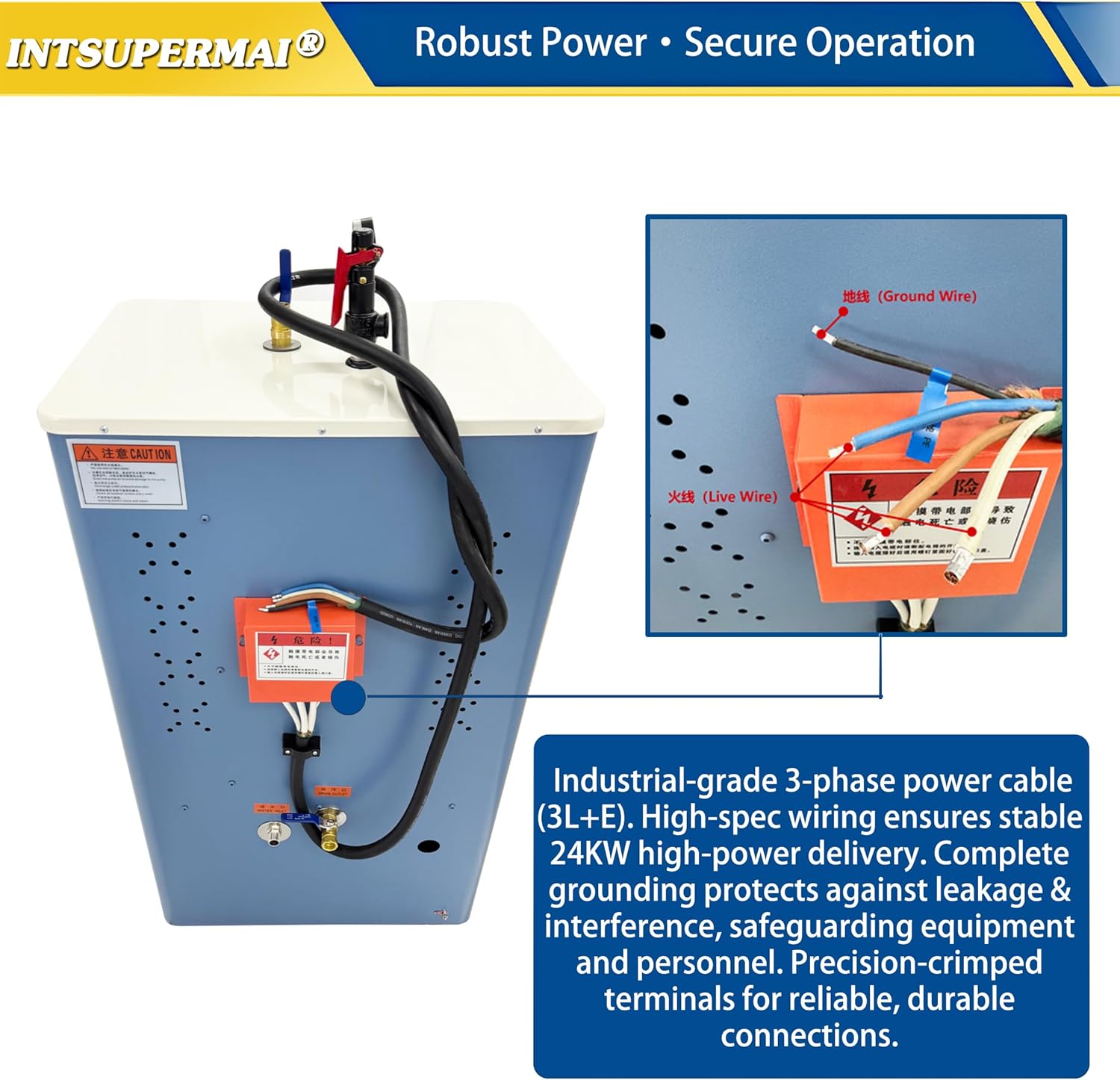

• Industrial-Grade Steam Efficiency​: Equipped with a ​24KW industrial-grade steam generator, this machine delivers rapid heat-up (2-3 mins) and maintains ​0-95℃ precise temperature control​ for uniform shrinkage

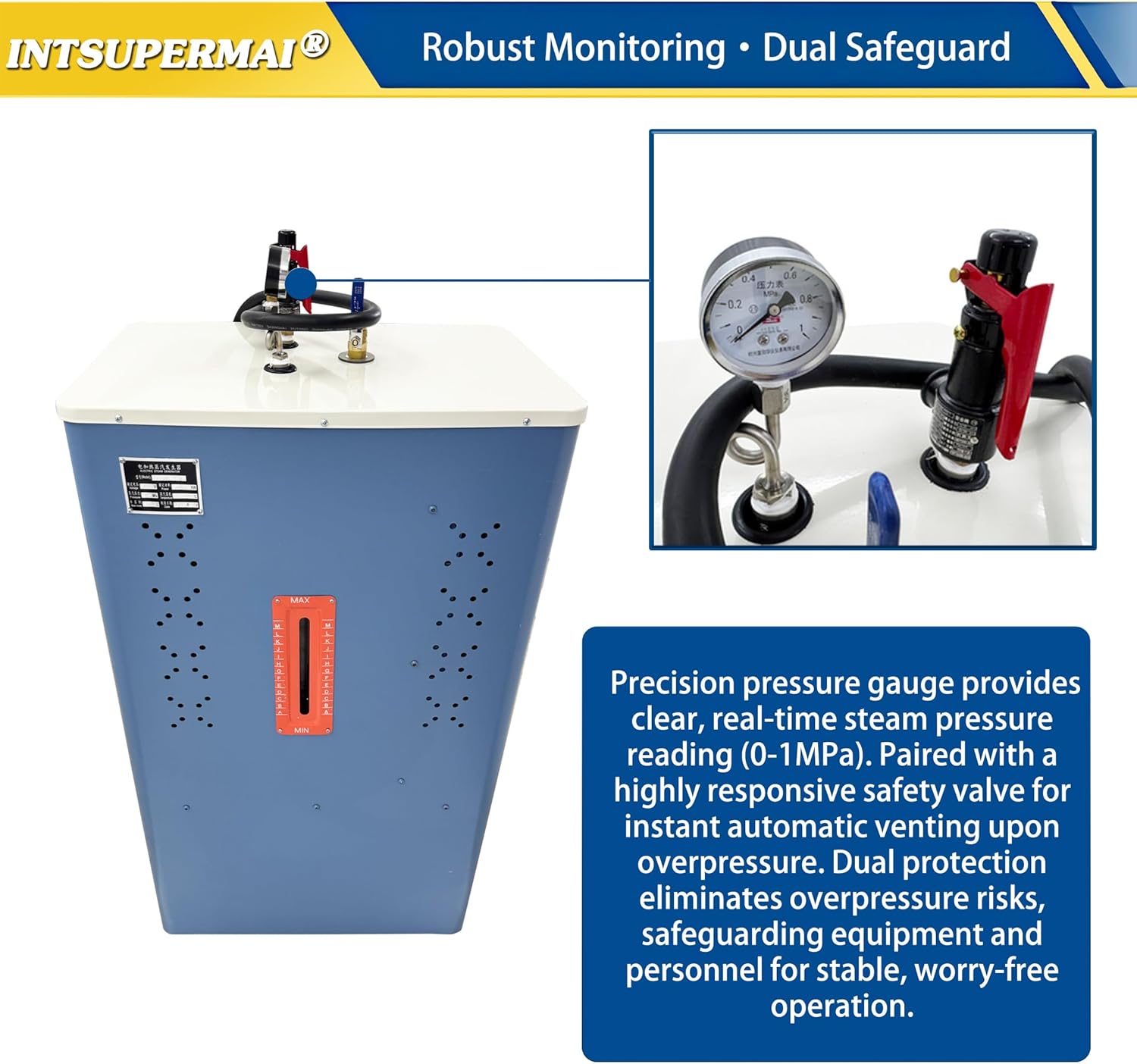

• Dual Safety Protection System​: Featuring a ​dual safety valve + pressure gauge, it eliminates overpressure risks during continuous production
• Energy-Saving Steam Reuse Technology: ＞80% steam reuse, 40% less energy than hot-air systems, 35% lower per-unit packaging cost
• Modular Maintenance Design​: The ​split-type construction​ isolates the steam generator from the tunnel, allowing repairs without halting production

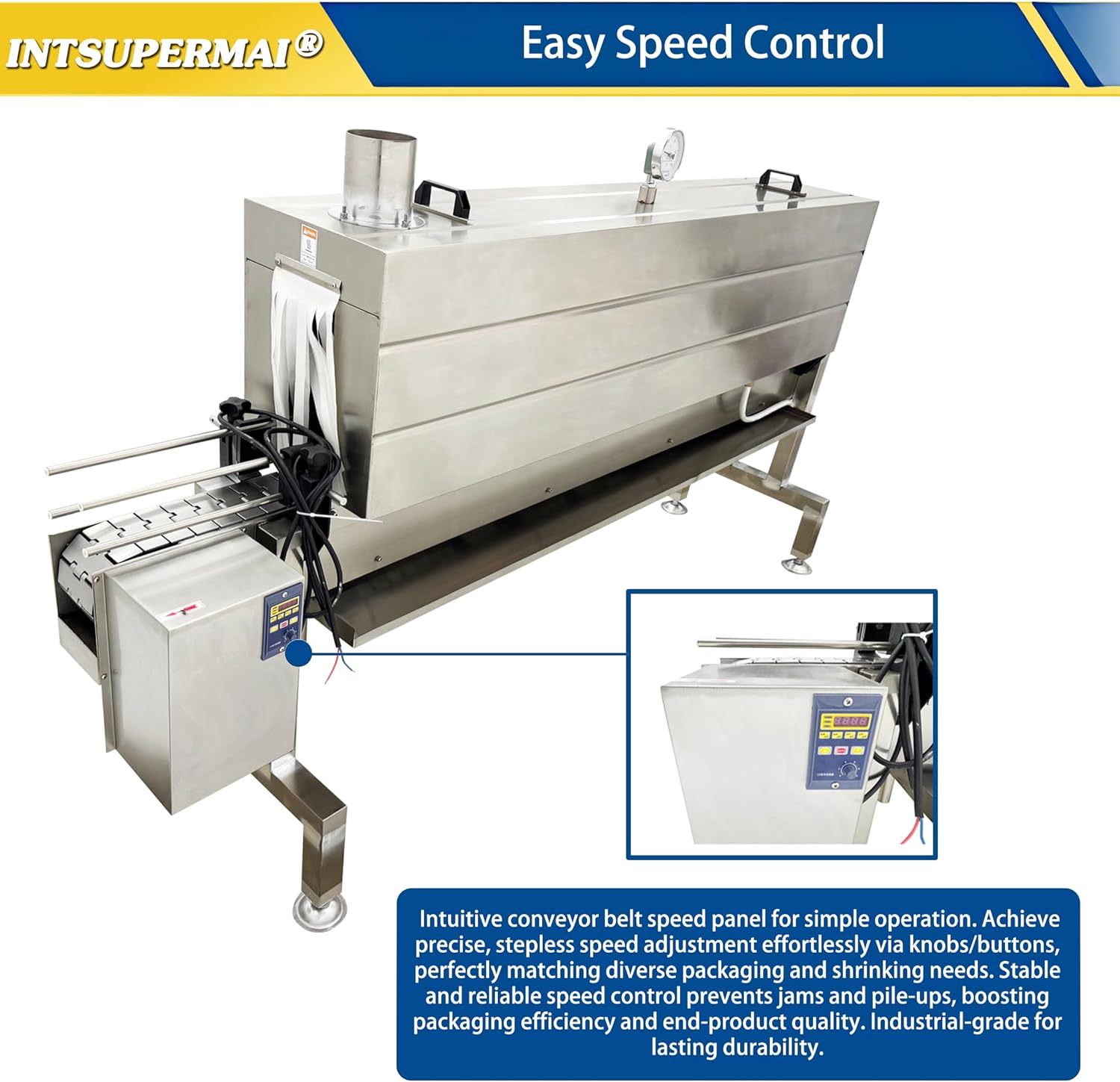

• Adjustable Conveyor Speed (0-35m/min)​​: Optimized for ​3000-10000 bottles/hour, our stepless speed control adapts to high-volume workflows
