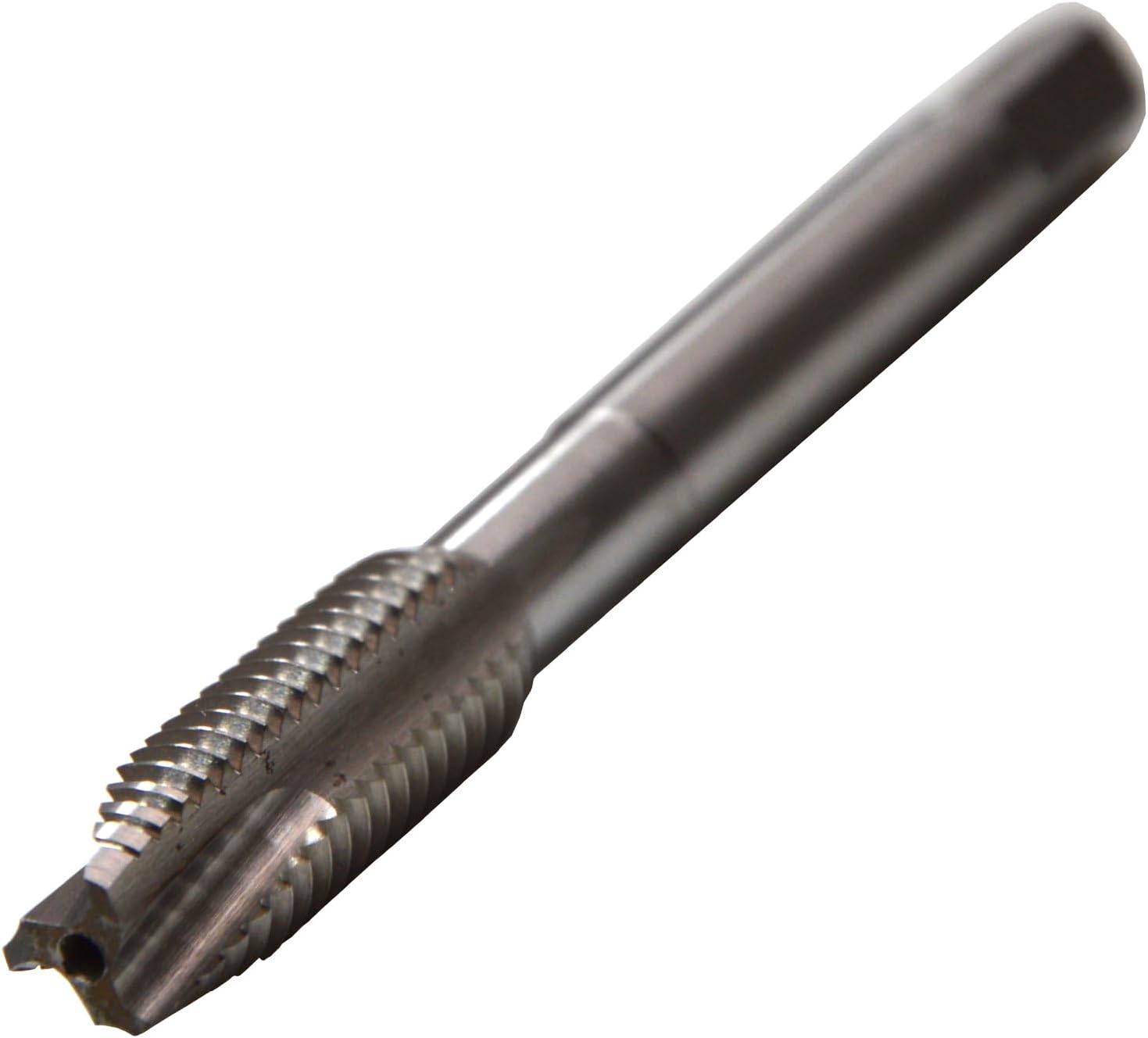

M24×3 Uncoated Precision Spiral Pointed Taps High-Speed Steel Cobalt Threading Tools for Metals Through Tapping Hole

Tips for Optimal Use: Always use cutting fluid for smoother operation and extended tap life. First create the workpiece bore diameter with a drill that matches the screw thread size minor diameter,Start with a pilot hole slightly smaller than the tap's minor diameter. Maintain proper alignment to ensure straight, accurate threads.Please use a cutting speed of 5m/min or less. Clean the tap after each use to prevent material buildup. Store in a dry, protected environment to maintain sharpness. Plug-chamfer taps are versatile for most tapping applications, with 3 to 5 chamfered threads for start-to-finish tapping. Bottoming-chamfer taps form threads with 1 to 2 chamfered threads, can thread holes closer to the bottom but need more torque to start. The Bright finish on these taps provides a smooth, polished surface. The TiCN coating on these taps protects them from wear and is harder and more wear-resistant than a TiN coating. The TiN coating on these taps protects them from wear and allows them to be used at higher speeds than taps with a bright finish. The TaC coating such as high hardness, anti-adhesion, low friction coefficient.

• High Hardness and Wear Resistance:HSS-Co,uncoated precision Spiral taps provides Fine-Toothed.polished surface,This enables the taps to maintain good hardness and cutting performance even in high-temperature environments, reducing the frequency of tap replacement, and improving the processing efficiency.,longer tool life. these taps withstand heavy-duty use without dulling or breaking.
• Good theading Performancel:Spiral pointed tap for through hole,ensuring clean, accurate threads in every hole.Clear tooth pattern.Good threading performance and chip evacuation performance, Durable Spiral Pointed Taps can achieve higher cutting speeds and feed rates, preventing clogging and ensuring a smooth tapping process even in through holes.
• High-Precision Machining:High-precision thread machining,high dimensional accuracy and low surface roughness.delivering precise threads with minimal effort. Achieve precise threading with minimal vibration, enhancing your control and accuracy during use.
• Versatile Applications:Suitable for machining a variety of materials, such as common structural cast iron, aluminum alloy, copper alloy, etc., including Industrial automotive, aerospace, and general manufacturing, used on machines such as a drill presses, lathes, or CNC Machining,Ideal for forged products and tempered materials like S48C to S55C at 25 to 35HRC.
• Tap Size: M24×3 / Tap Chamfer:/Thread Limit:P4/Overall length:120mm/Thread length:45mm/ Shank dia:19mm/Size of square:15mm/Lg.of square:18mm/uncoat/1pc/
