Manifold Hot Tub Spa Part 14 3/4" Outlets with Coupler Kit Video How to

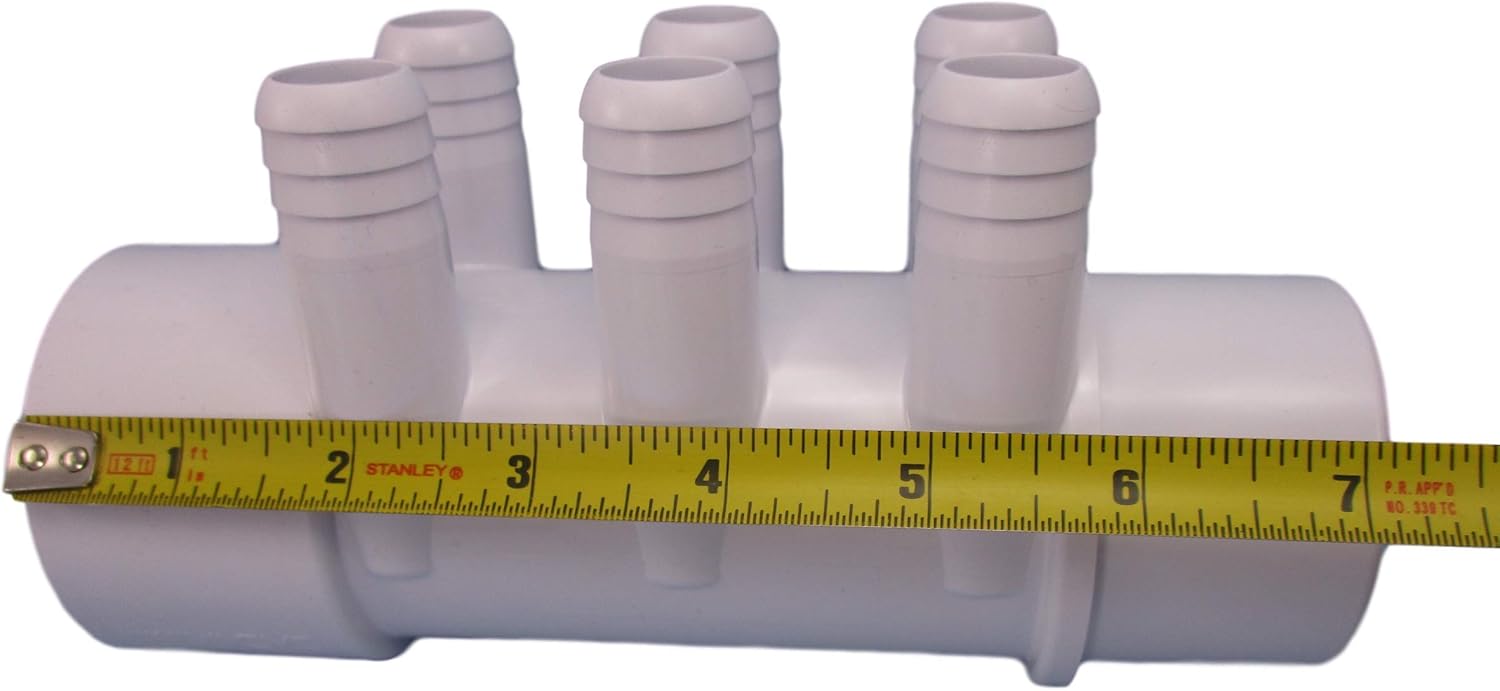

See the Informational video here first. This Kit is a (1) 2" Dead End X 2" Slip X (6) 3/4" Barbs manifolds and (1) 2" Spigot/Street X 2" Slip X (6) 3/4" Barbs manifold, (1) 2" Spigot/Street X 2" Slip X (2) 3/4" Barbs, manifold Connect Barbs and clamps with a Coupler Kit. The Kit consists of 14 Barbs with (3) Manifolds total (2) with (6) 3/4" Barbs and (1) 2" (2) 3/4" Barbs manifold totaling 14 Outputs, (2) 3/4" Plugs to cut the manifolds down to 12, 11 or 10 outputs, a 2" Coupler, 6" of 2" Soft Pipe, (28) 3/4" Clamps and 42" of Clear 3/4" Tubing so you have about 3" per extension. The kit is to be used to replace a broken manifold and extend the output side tubes and use the coupler to spin it to win it on the old pipe and then glue the 6" piece of 2" Flex in and then glue the manifolds in from there. The Manifold receives a 2" pipe or fitting on one side and then slips inside of a 2" fitting on the other side.

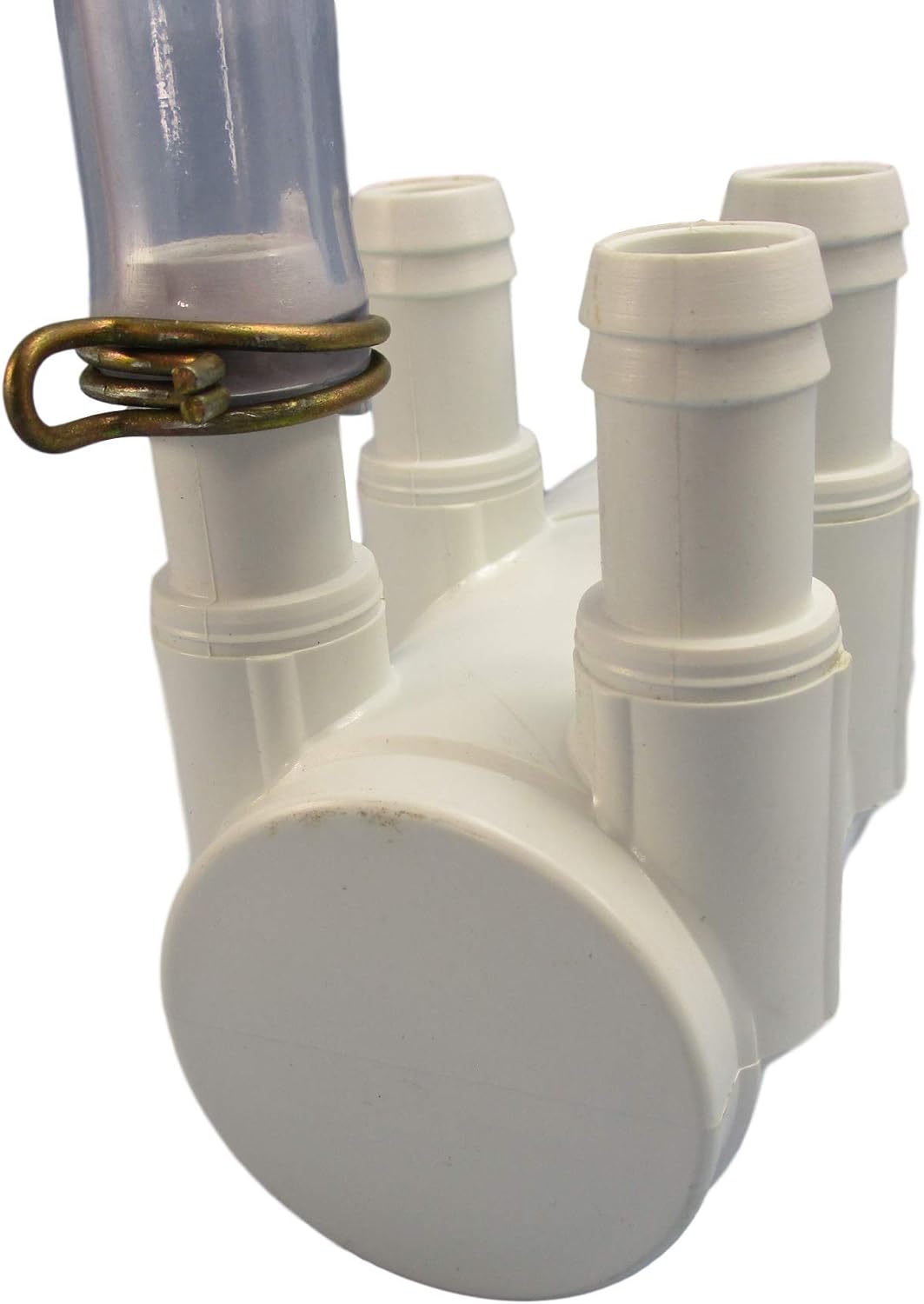

• Cracked Hot Tub Manifold Repair Kit 2" X (14) 3/4" Barb Dead End Manifold Kit
• Accepts 2" PVC Pipe which measures about 2 3/8" Outside Diameter
• (14) 3/4" Ribbed Barbs
• Look at our You Tube Video about Manifolds See Description for more info
• Comes with (3) Barb plugs to make the manifolds a 11 or 10 or 9 Barb
