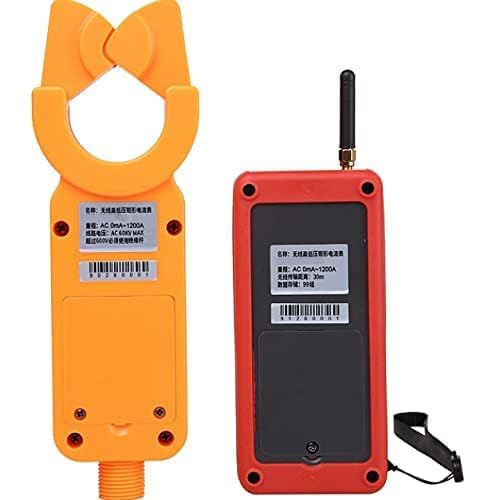

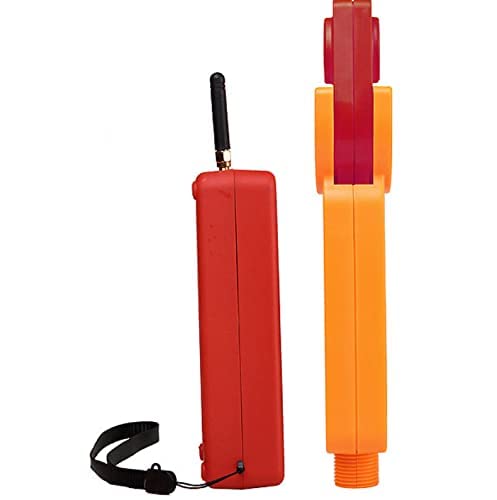

Portable H/L Voltage Clamp Leakage Current Meter Gauge Teste with Range 0.00mA to 60.0A Transmission 30M for Leakage Current Measurement

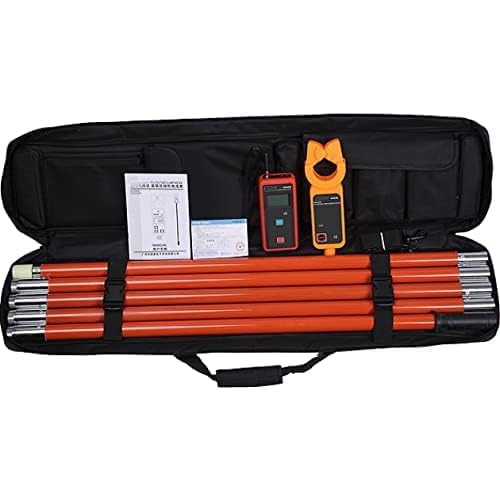

Technical Parameters : * Function: H/L voltage AC leakage current measurement * Power Supply: DC 6V(1.5V AAAx4)(Not included) *Test Mode: Clamp CT, integration method *Transmission Mode: 433Hz transmission, transmission distance 30M * Display Mode: 4 digital LCD display, backlight function, suitable for dim place *LCD Size: 47mm×28.5mm *Meter Size: Detector: 76mm×255mm×31mm; Receiver: 78mm×165mm×42mm *CT Size: φ48mm *Sampling Rate: 2 times/second *Measurement Range: 0.00mA ~ 60A (50/60Hz automatic) *Max Resolution: 0.01mA *Shift :0.00mA~60A full-automatic *Test Accuracy (23℃±5℃ , below80%RH): 0.00mA~999mA , ±1%±5dgt 1.00A~60.0A, ±1.5%±5dgt *Data Storage Function *Line Voltage: Test of the wire with insulation skin below 60kV, test of bare wire below 35kV (operate with insulation rod) *Data Hold Function *Data Access Function *Overflow display Function *No Signal Indication *Auto Shut Down： 15 minutes after boot up * Meter Weight: 3630g (include insulation rod) * Working Environment: -10℃~50℃, below 80%rh * Store Environment ：-10℃~60℃, below 70%rh *Interference： No interference of 315MHz and 433MHz same frequency signals *Insulation Rod Size： Φ32mm, 1m/pcs(5pcs) *Insulation Strength： AC110kV/rms(all 5PCS insulation rod connect, between the two ends)

• 1. Measurement of H/L voltage AC leakage current ( above 600V operate with insulation rod)
• 2. Range: 0.00mA~60.0A ； Resolution: 0.01mA
• 3. Peak Hold, Data Storage: 99 Groups
• 4. Wireless Transmission: 30M
• 5. Line Voltage: Test of the wire with insulation skin below 60kV, test of bare wire below 35kV (operate with insulation rod)
